Overview of job manufacturing
Job manufacturing is the main function of dentalcnc.
Single manufacturing via the working chamber
On machines without a blank changer
Machine component which stores multiple blanks in a magazine and which can automatically load them into the working chamber.. When using the search, use a blank changer or a blank magazine instead, you manufacture jobs one at a time via the working chamber.

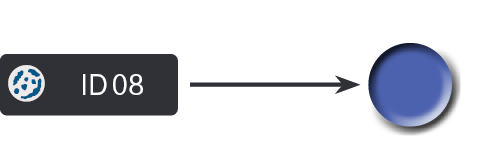

Assignment: 1 job to 1 blank/block adapter
Multi-manufacturing via the blank magazine
On machines with a blank changer Machine component which stores multiple blanks in a magazine and which can automatically load them into the working chamber.. When using the search, use a blank changer or a blank magazine instead, you typically manufacture multiple jobs in succession via the blank magazine Part of the blank changer in which you store the blanks for automatic loading..

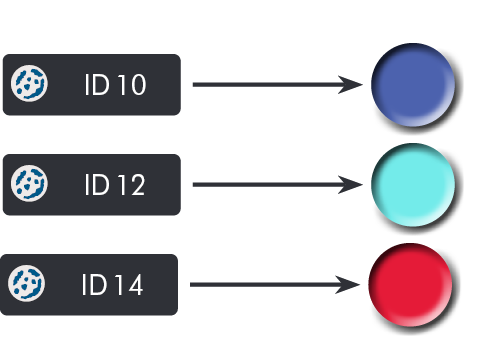

Assignment: n jobs with different IDs to n blanks/block adapters.
Combined manufacturing
With combined manufacturing, you can combine multiple jobs that relate to the same blank into 1 manufacturing process. This situation occurs when you have calculated multiple stages of a blank in dentalcam.

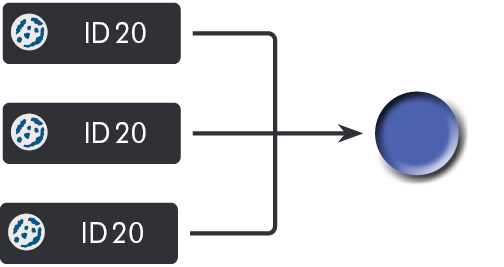

Assignment: n jobs with the same ID to 1 blank/block adapter.
You can use combined manufacturing for both single and multi-manufacturing.
Applicability of manufacturing modes by machine
|
|
R5 |
Z4 |
K5+ / K5 |
N4+ |
S5 |
E5 |
E4 |
E3 |
|---|---|---|---|---|---|---|---|---|
|
Single manufacturing via the working chamber |
Yes |
Yes |
Yes |
Yes |
No |
Yes |
Yes |
Yes |
|
Multi-manufacturing via the blank magazine |
Yes |
No |
No |
No |
Yes |
No |
No |
No |
|
Yes |
No |
Yes |
Yes |
Yes |
Yes |
No |
No |
