Program components and data exchange

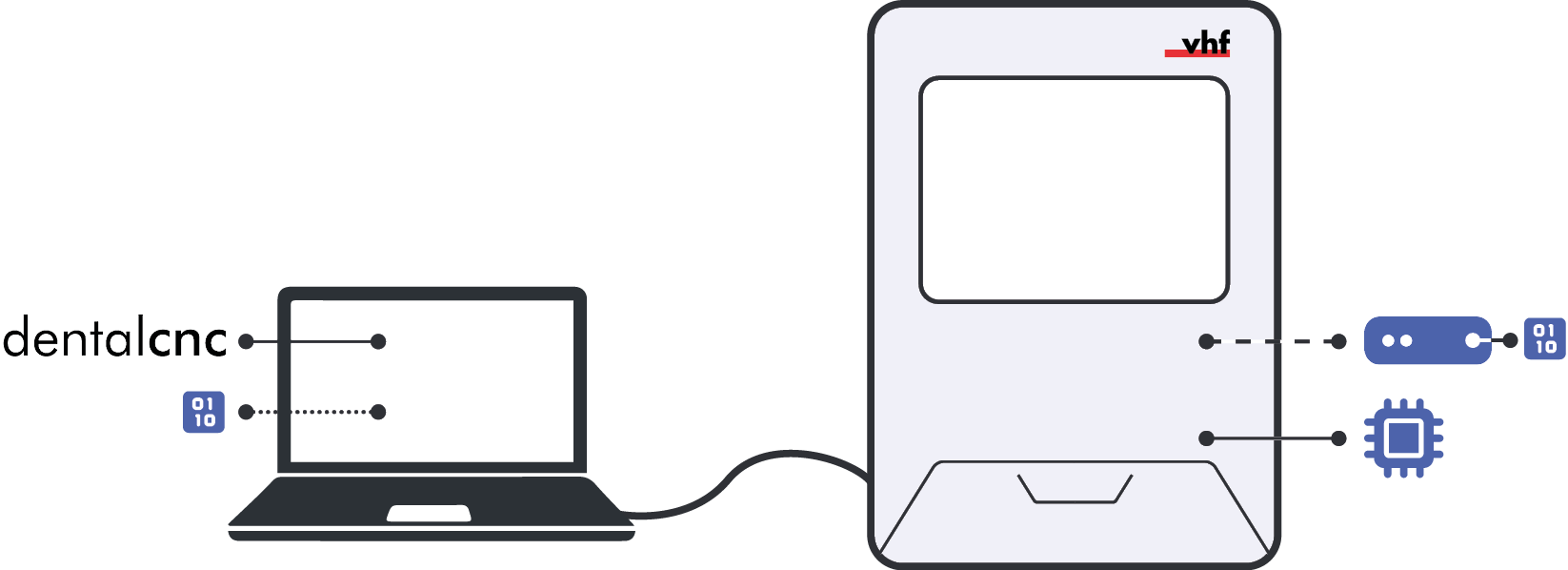

Program components
dentalcnc uses a client-server architecture.
-
dentalcnc (Client) This Windows program provides the user interface that you interact with. It runs on a standard Windows PC (dentalcnc computer).
dentalcnc communicates with the server program to control the machine.
-
Machine software
The machine software includes programs and data for machine control.
-
Server program The server program receives commands from dentalcnc and converts them into machine commands.
The server program runs on the following devices:
-
On the interface computer of appropriately equipped machines.
-
On the dentalcnc machine itself for machines without an interface computer.
Machines with an interface computer
Machines without an interface computer E3
E4
E5
All other machines
-
-
Machine configuration Includes machine geometry data, data on test and calibration specimens, data for tool changes, etc.
-
Firmware Firmware is the software that runs on the machine's control unit.
-
|
Icon |
Meaning |
|---|---|
|
|
Only for machines without an interface computer |
|
|
Only for machines with an interface computer |
|
|
Machine software other than firmware |
|
|
Interface computers for compatible machines |
|
|
Firmware |
Data exchange
dentalcam 9 and dentalcnc 9 are connected to myvhf and the vhf cloud via the Internet. To operate dentalcam 9 and dentalcnc 9, the programs and the machine must therefore be linked withmyvhf.

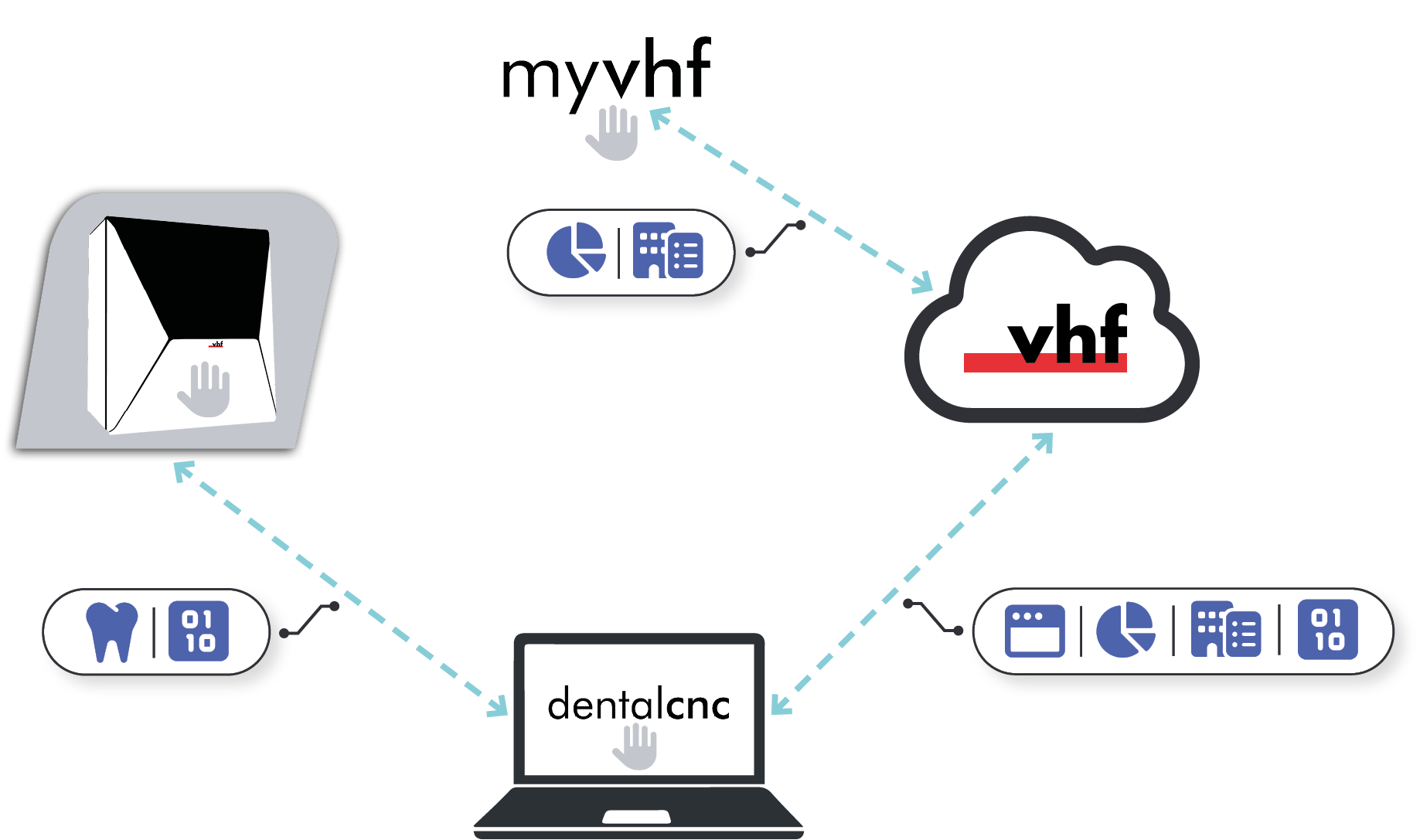

This results in a data exchange as shown in the following diagram:
|
Icon |
Meaning |
|---|---|
|
|
User interaction |
|
|
Usage statistics |
|
|
vhf cloud |
|
|
Company profile: Company information, team members, licenses, etc. |
|
|
dentalcnc updates |
|
|
Machine software |
|
|
Job data |
myvhf is already available in many regions. If it is unavailable, use it dentalcam & dentalcnc as a standalone solution.
