Using Auto-nesting features

dentalcam uses the auto-nesting features to automatically perform certain nesting steps. The auto-nesting features can be performed manually in the nesting view.

  • In the program settings, you can configure dentalcam to automatically perform auto-nesting features when loading a blank and after editing individual objects. Manual execution is still possible.

  • You can manually adjust the results of the auto-nesting features.

Executing auto-positioning manually

dentalcam arranges all objects in the disc were not locked for auto-positioning.

Requirement You are editing a blank in the Nesting view using any objects.

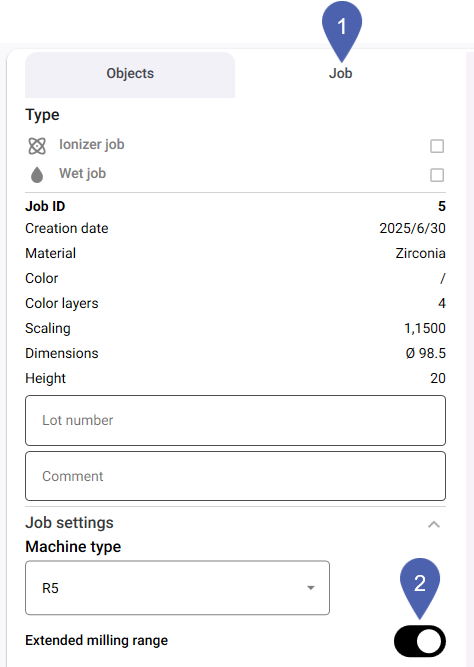

  1. If you want to use the extended milling range:

    1. Expand the Job column.

    2. Activate the Extended milling area toggle switch.

    The extended milling range allows objects to be nested right up to the edge of the disc. This increases material utilization but reduces process reliability.



  2. Open the Auto-Nesting editing option.

    • dentalcam displays the auto-nesting options in the editing options column.

  3. Select the desired entry from the drop-down list below the Auto-Positioning label.

    Notes on list entries

    Entry

    Object arrangement

    Spiral-shaped

    Spiral shaped from the center of the blank

    This arrangement is recommended for machines with a partially open blank holder (C shape).

  4. Select the Positioning button.

Execute auto-connector manually

dentalcam positions connectors on each object. The number of connectors depends on the indication and the material shape.

Requirement You are editing a blank in the Nesting view using any objects.

  1. Open the Auto-Nesting editing option.

    • dentalcam displays the auto-nesting options in the editing options column.

  2. Select the Connector button.
