Applies to: R5

Technical data

The R5 is available with an automatic blank changer Machine component which stores multiple blanks in a magazine and which can automatically load them into the working chamber.. When using the search, use a blank changer or a blank magazine instead as well as a variant with a manual blank change.

All information and work steps in these instructions that refer to the blank changer Machine component which stores multiple blanks in a magazine and which can automatically load them into the working chamber.. When using the search, use a blank changer or a blank magazine instead or the blank magazine Part of the blank changer in which you store the blanks for automatic loading. do not apply to the R5 with a manual blank change.

Dimensions (W/D/H)

	Unit	Value
Footprint (approx.)	mm in	580 x 380 22.8 x 15.0
Housing fully closed (approx.)	mm in	600 x 576 x 698 23.6 x 23.6 x 27.5
Minimum required space for operation (approx.)	mm in	750 x 820 x 920 29.5 x 32.3 x 36.2

Unit

Value

Footprint (approx.)

580 x 380

22.8 x 15.0

Housing fully closed (approx.)

600 x 576 x 698

23.6 x 23.6 x 27.5

Minimum required space for operation (approx.)

750 x 820 x 920

29.5 x 32.3 x 36.2

Base system

	Unit	Value
Weight (approx.) (with blank changer Machine component which stores multiple blanks in a magazine and which can automatically load them into the working chamber.. When using the search, use a blank changer or a blank magazine instead / with manual blank changer Machine component which stores multiple blanks in a magazine and which can automatically load them into the working chamber.. When using the search, use a blank changer or a blank magazine instead)	kg lbs	149 / 124 328 / 273
Axes – Rotational axis A / B		5 360° / ± 35°
Overvoltage category (IEC 60664-1)		II

Unit

Value

Weight (approx.)

(with blank changer Machine component which stores multiple blanks in a magazine and which can automatically load them into the working chamber.. When using the search, use a blank changer or a blank magazine instead / with manual blank changer Machine component which stores multiple blanks in a magazine and which can automatically load them into the working chamber.. When using the search, use a blank changer or a blank magazine instead)

lbs

149 / 124

328 / 273

Axes

– Rotational axis A / B

360° / ± 35°

Overvoltage category (IEC 60664-1)

External compressed air supply

	Unit	Value
Min. / max. air pressure	bar psi	6 / 8 90 / 120
Recommended air pressure	bar psi	7 100 required for all machine functions
Compressed air consumption (approx.) – Ionizer deactivated – Ionizer activated	l/min cfm l/min cfm	50/65 (at 6/8 bar) 1.8/2.3 cfm (at 90/120 psi) 105/110 (at 7/8 bar) 3.7/3.9 (at 100/120 psi)
Air purity (ISO 8573-1:2010)		Solid particles: class 3 Water: class 4 Total oil content: class 3

External air extraction system

	Unit	Value
Minimum extraction capacity	l/min cfm	3,500 (at 220 hPa) 123.6 (at 3.2 psi)
Suction unit		Designed for the commercial use in the dental sector Equipped with a filter of the filter class M

Unit

Value

Minimum extraction capacity

l/min

cfm

3,500 (at 220 hPa)

123.6 (at 3.2 psi)

Suction unit

Designed for the commercial use in the dental sector

Equipped with a filter of the filter class M

Ambient conditions

	Unit	Value
Relative humidity		80 %, non-condensing
Ambient temperature for storage/transport	°C °F	‑20 – 60 -4 – 140
Ambient temperature for operation	°C °F	10 – 30 50 – 86
Location type		Indoor
Maximum height above mean sea level	m ft	2000 6561
Ambient air (IEC 60664-1)		Dust free, pollution degree 2
Electromagnetic radiation (IEC 61326-1)		Residential, business and commercial areas
Electromagnetic interference (IEC 61326-1)		Industrial environment

Spindle

	Unit	Value
Model		SFR 400P (synchronous)
Maximum rotational speed	rpm	80,000
Nominal power under continuous operation (S1)	W	440
Nominal power under uninterrupted periodic operation (S6)	W	600
Peak power (Pmax)	W	800
Collet chuck diameter	mm	3

Tools

	Unit	Value
Maximum number of tools in magazine		16
Maximum tool length	mm	40

Standard blank holder

	Unit	Value
Min. / max. disc diameter	mm	98.5 / 98.8
Maximum disc height	mm	40
Min. / max. height of the disc rim	mm	9.8 / 10.5
Maximum block dimensions (L/D/H)	mm	40 x 20 x 20 (requires block holder)

Cooling liquid system

	Unit	Value
Cooling liquid – For titanium		Drinking water Emulsion of water and the cooling lubricant Tec Liquid Pro
Maximum amount of cooling liquid	l qt	3.4 3.6

Unit

Value

Cooling liquid

– For titanium

Drinking water

Emulsion of water and the cooling lubricant Tec Liquid Pro

Maximum amount of cooling liquid

3.4

3.6

Blank changer (not for R5 with manual blank change)

	Unit	Value
Number of slots		10
Mounting method		Frame-less

Sound emission

	Unit	Value
Sound pressure level	dB(A)	69.8 dB(A)

Measuring conditions	Value
Machined material	IPS e.max (block, C14)
Operating condition	Manufacturing (full load), without air extraction
Measured value	Sound pressure level (distance: 1 m)
Measurement uncertainty	4 dB(A)
Measurement according to	ISO 3746, accuracy grade 3

Connections

	Unit	Value
Pneumatic connection, push-in fitting (Diameter)	mm	8
Power connector (and maximum power consumption in watts)	V AC Hz W	100 – 240 50/60 750 Glass fuse T6,3A L250V
Network connection – Speed		RJ-45 10BASE/100BASE-TX/1000BASE-T (Auto-sensing)
Data port for supported suction unit or switching unit		Yes
Hose connection for external air extraction system (Diameter)	mm	45

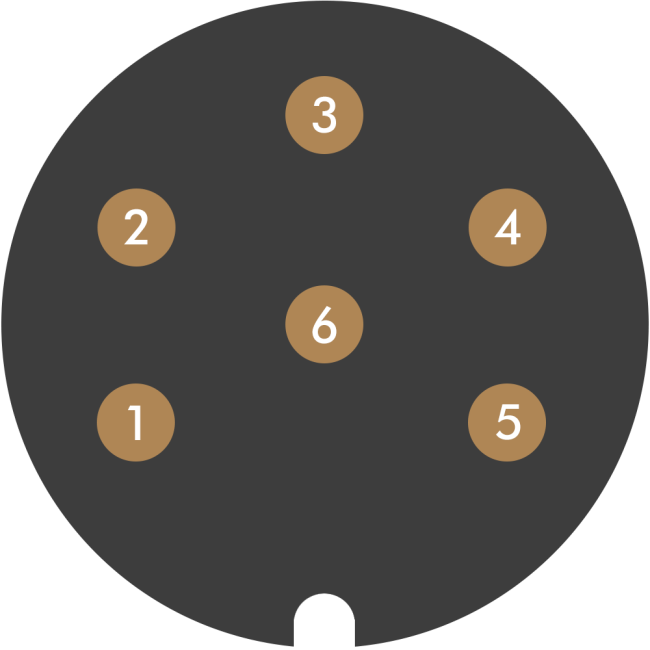

Pin assignment of the suction unit data port

+ 24 V, switched, output 1
+ 24 V, switched, output 2 (not used)
+24 V, continuous
Rear signal input, output 2 (not used)
Rear signal input, output 1 (not used)
Ground (PE)
